Number of Axes：3
Table Travel (X) (mm)：800
Table Travel (Y) (mm)：500
Dimension(L*W*H)：2700*2400*2500
Weight (T)：5.2 T
CNC Control System：GSK, FANUC, MITSUBISHI, KND, Siemens
Table Travel (Z) (mm)：500
Positioning Accuracy (mm)：0.003
Repeatability (X/Y/Z) (mm)：0.003
Range of Spindle Speed(r.p.m)：8000 - 15000 r.p.m
Spindle Motor Power(kW)：7.5
Max. Table Load(kg)：500 kg
Share:
Product Description

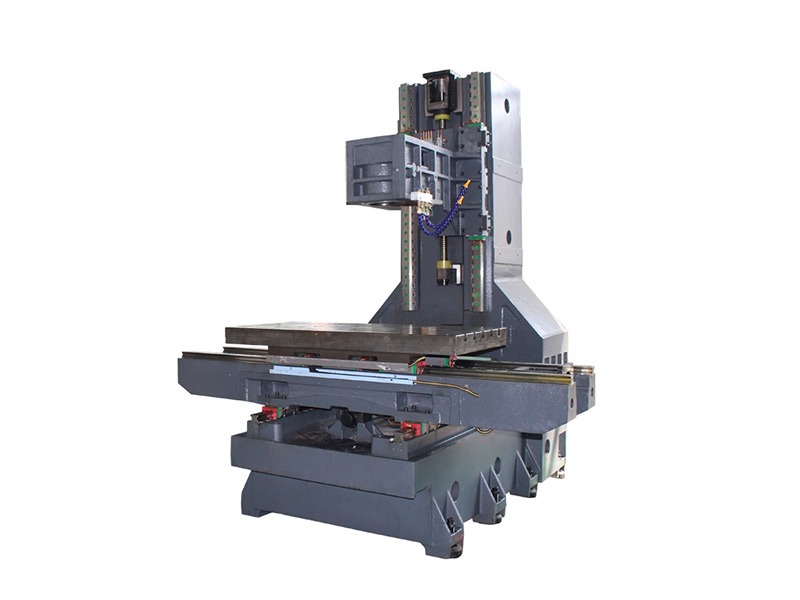

Some models of four guideway design, strong bearing capacity；
The Z axis and X axis are designed with 6 sliders to greatly improve the cutting stability；
The structure of the three-layer column, the two-layer saddle seat and the two-layer compound casting of the base is stable；
The joint surface of head column is designed at 1:1:1 to increase cutting rigidity；
Column heightening Z axis lengthening with fourth axis without gasket height；
The tool bank is fixed by sitting design to reduce the lateral direction of the column Long-term load produces deformation.
