EDM Drilling Machine

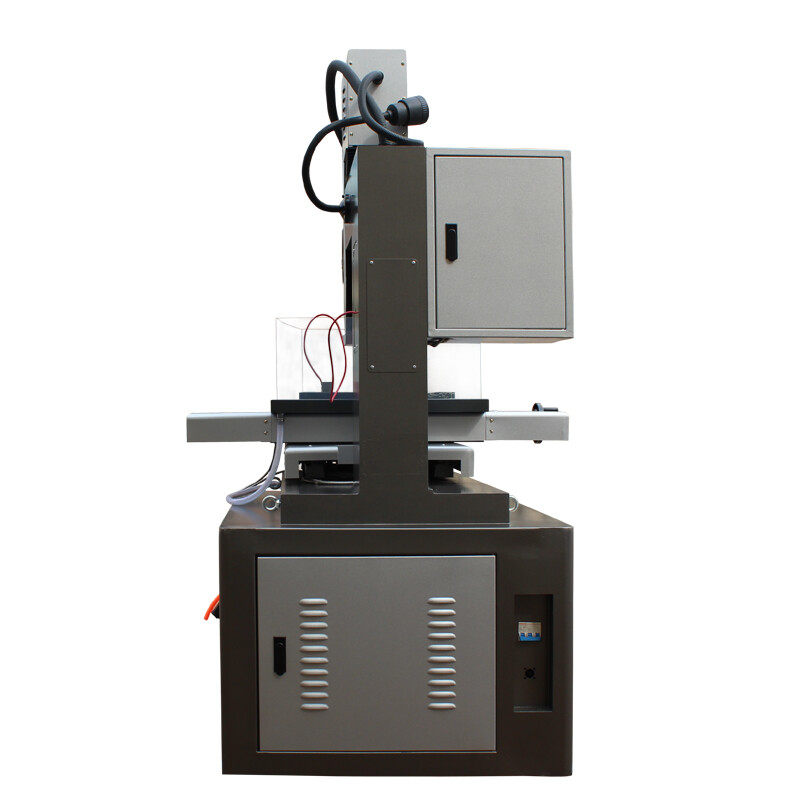

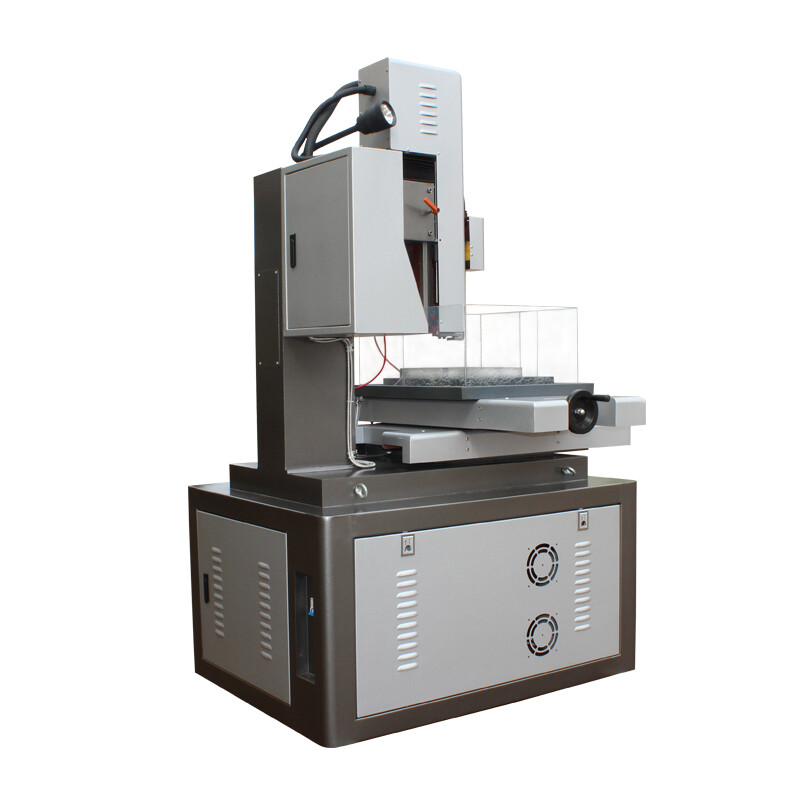

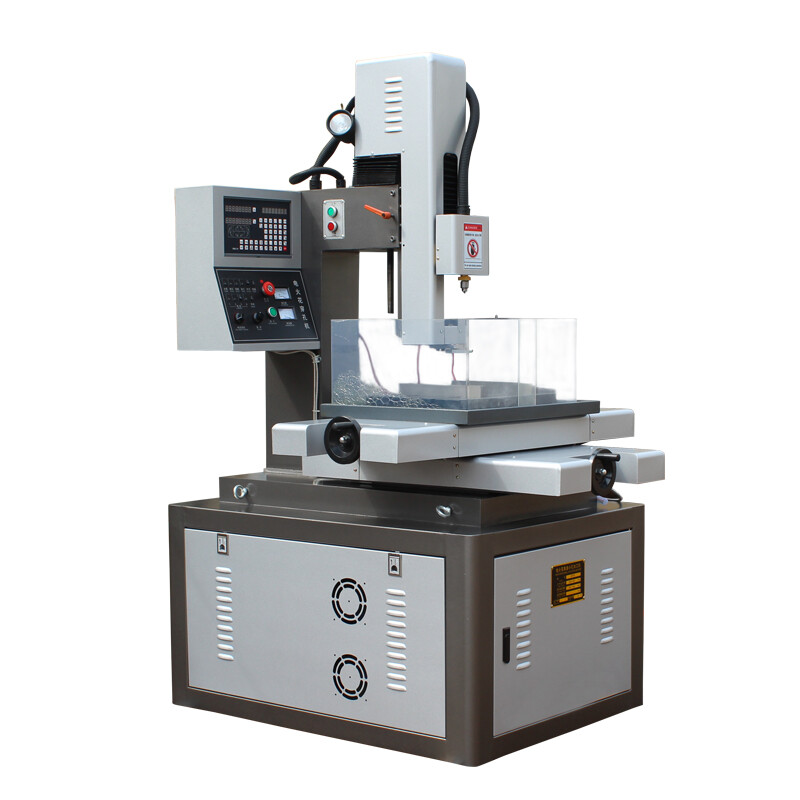

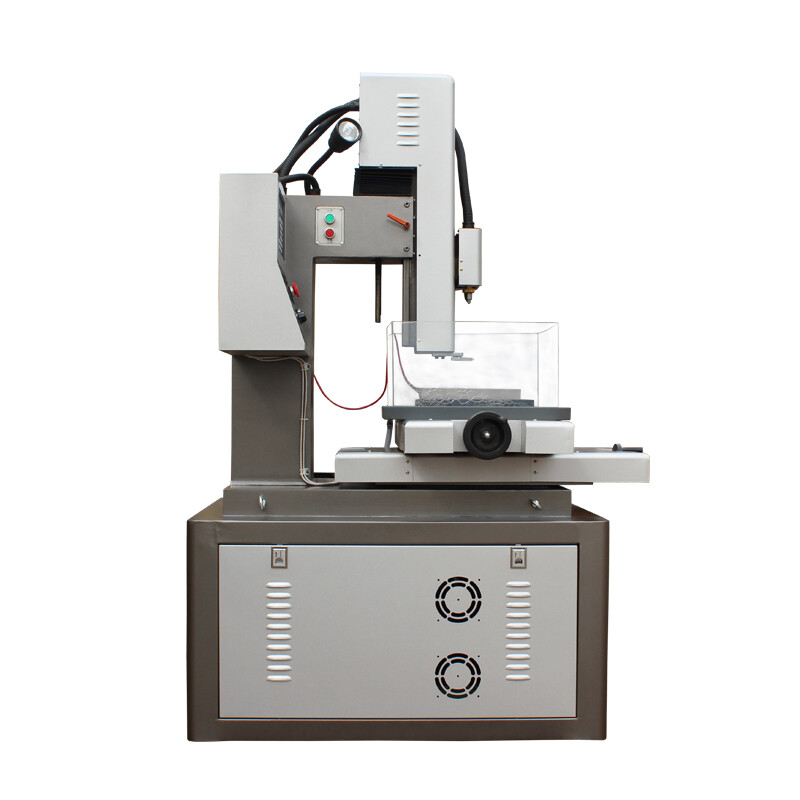

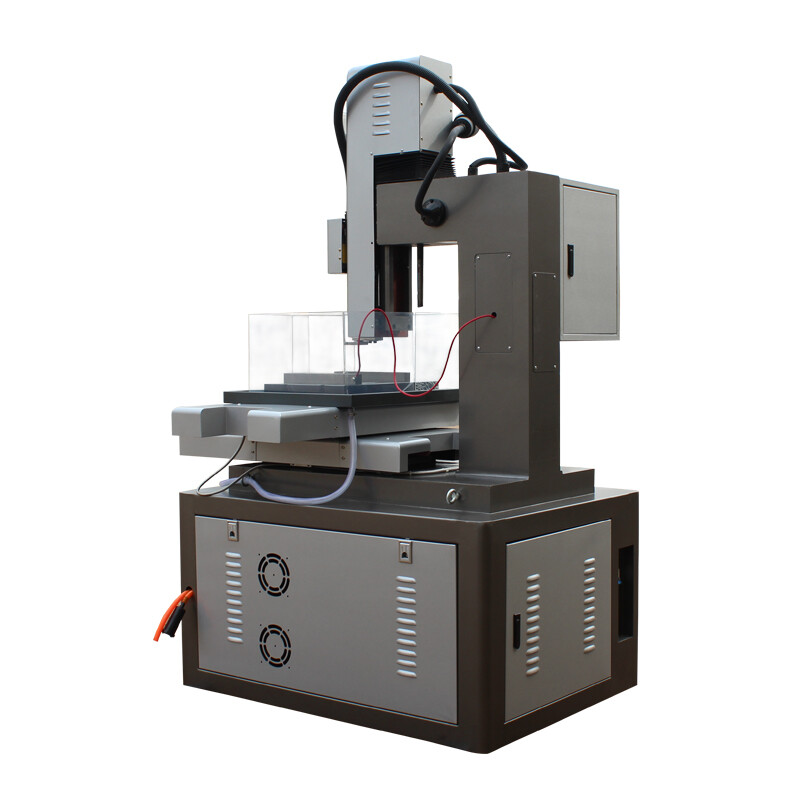

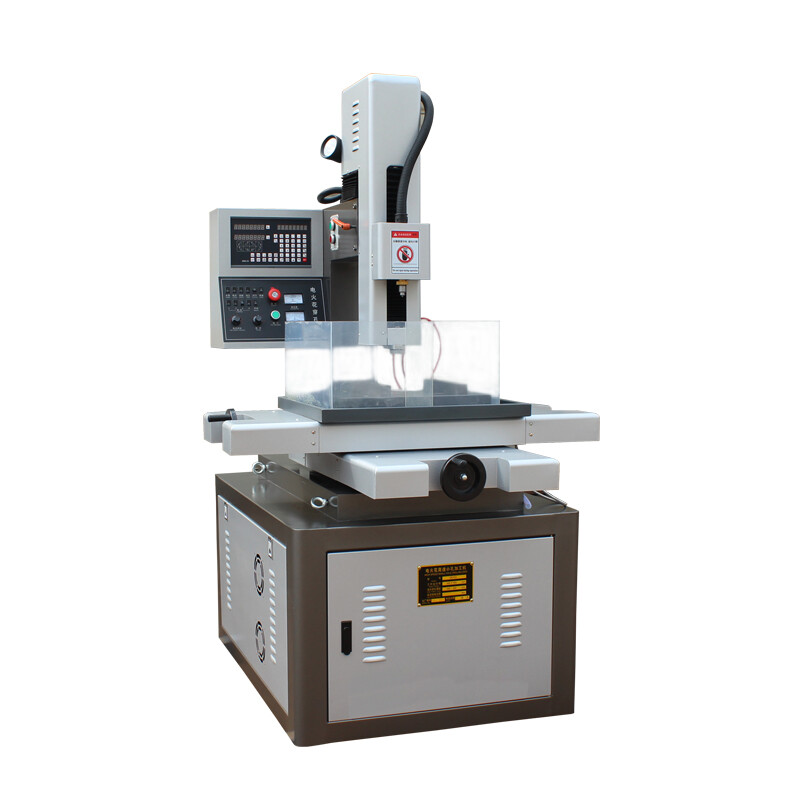

DD703.50 edm drilling machine
Working desk size：700*1000mm
X-Y trip：500*630mm
Spindle servo stroke：600mm
Spindle head stroke：500mm
Spindle head speed：20-120rpm
Clamping electrode diameter：0.3-3mm
Guide and table distance：500mm
Taper：0
Advantage：Good stability and low electrode consumption
Max. Drilling Dia. (mm)：3 mm
type：Drilling & Milling Machine
Condition：New
Range of Spindle Speed(r.p.m)：20 - 120
CNC or Not：CNC
Drilling Speed：30-60mm/min
X-Y trip：500*630mm
Spindle servo stroke：600mm
Spindle head stroke：500mm
Spindle head speed：20-120rpm
Clamping electrode diameter：0.3-3mm
Guide and table distance：500mm
Taper：0
Advantage：Good stability and low electrode consumption
Max. Drilling Dia. (mm)：3 mm
type：Drilling & Milling Machine
Condition：New
Range of Spindle Speed(r.p.m)：20 - 120
CNC or Not：CNC
Drilling Speed：30-60mm/min
GET A QUOTE
Share:
Product Description

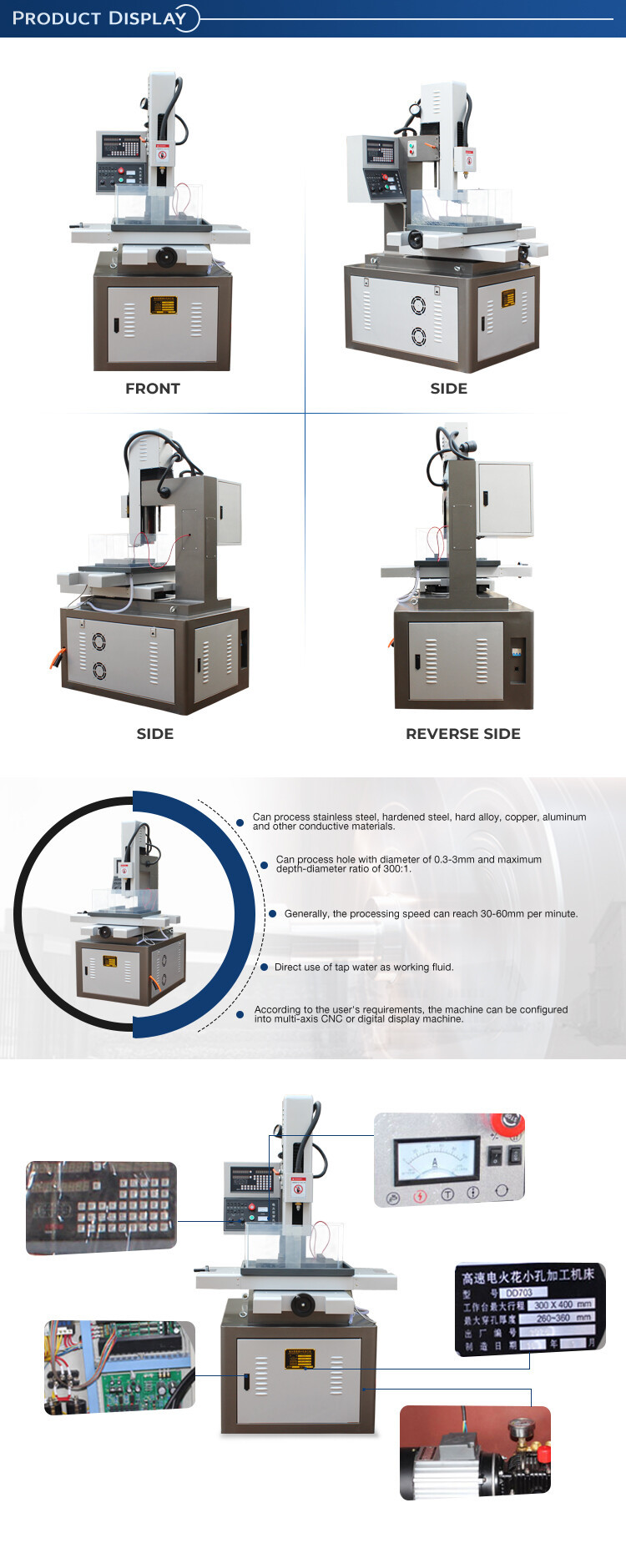

DD703.50 edm drilling machine Features：
It can process stainless steel, hardened steel, hard alloycopper, aluminum and other conductive materials
It can process holes with a diameter of 0.3-3mm and amaximum depth to diameter ratio of 300: 1 or more Processing speed can generally reach 30-60mm perminute
It uses tap water directly as working fluid According to users requirements, it can be configured into multi-axis CNC or digital display machine tools
Parameter table：
