Edm Cutting Machine Describe

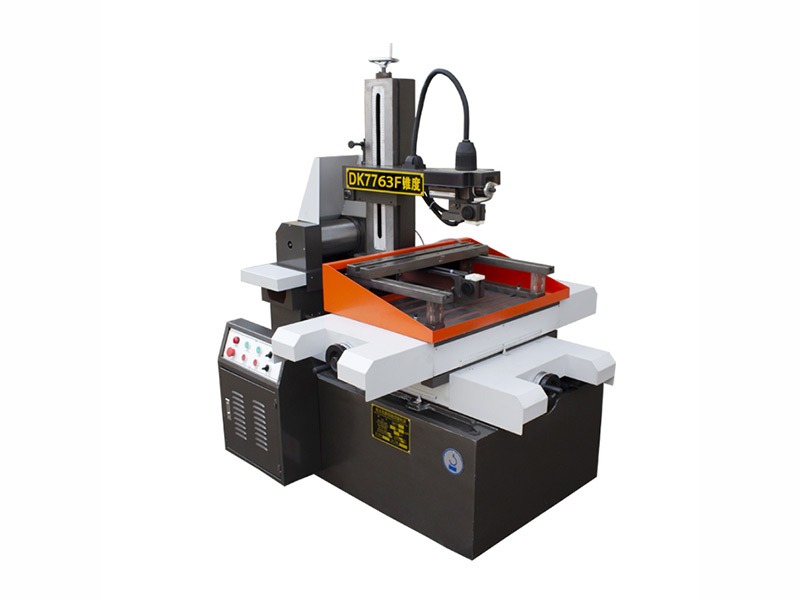

Taizhou Terui CNC Machine Co., Ltd. produces whole series of DK77 CNC edm wire cutting machines,which adopts high precision V-shaped guide rail(Linear guide rail optional) and P3-grade high precison ball screw. The products have high quality, complete models, long service life and high precision. Machine specifications can be customized according to customer needs,like non-standard models DK7740(45)F,DK7750(55)F,DK7763F,DK7780F,DK77100F,DK77120F or even larger models. The company also produces ±30°, ±45° swing large taper machines and CNC high-precision middle speed edm wire cutting machines(Precision≤±0.005mm,roughness≤1.0μm). The following are the main parameters of DK77 series machines.

1、Standard maximum cutting taper:±6°/80mm;(±15°,±30°,±45° are optional)

2、Precision ≤ 0.02mm,according to GB7926-2005 standard;(If linear guide equipped, the precision can reach 0.01mm)

3、Best surface roughness ≤ Ra2.5μm(single-cut),Ra1.5μm(multi-cut);

4、Molybdenum wire diameter:0.1-0.2mm;

5、Max. cutting speed≥120mm^2/min;

6、Voltage:3 phase 380V(single phase 220V,3 phase 220V or other voltage can be customized),Power:1.5KW;

7、Working fluid:Water-based emulsion.

Edm Cutting MachineParameter Table

Production Equipments

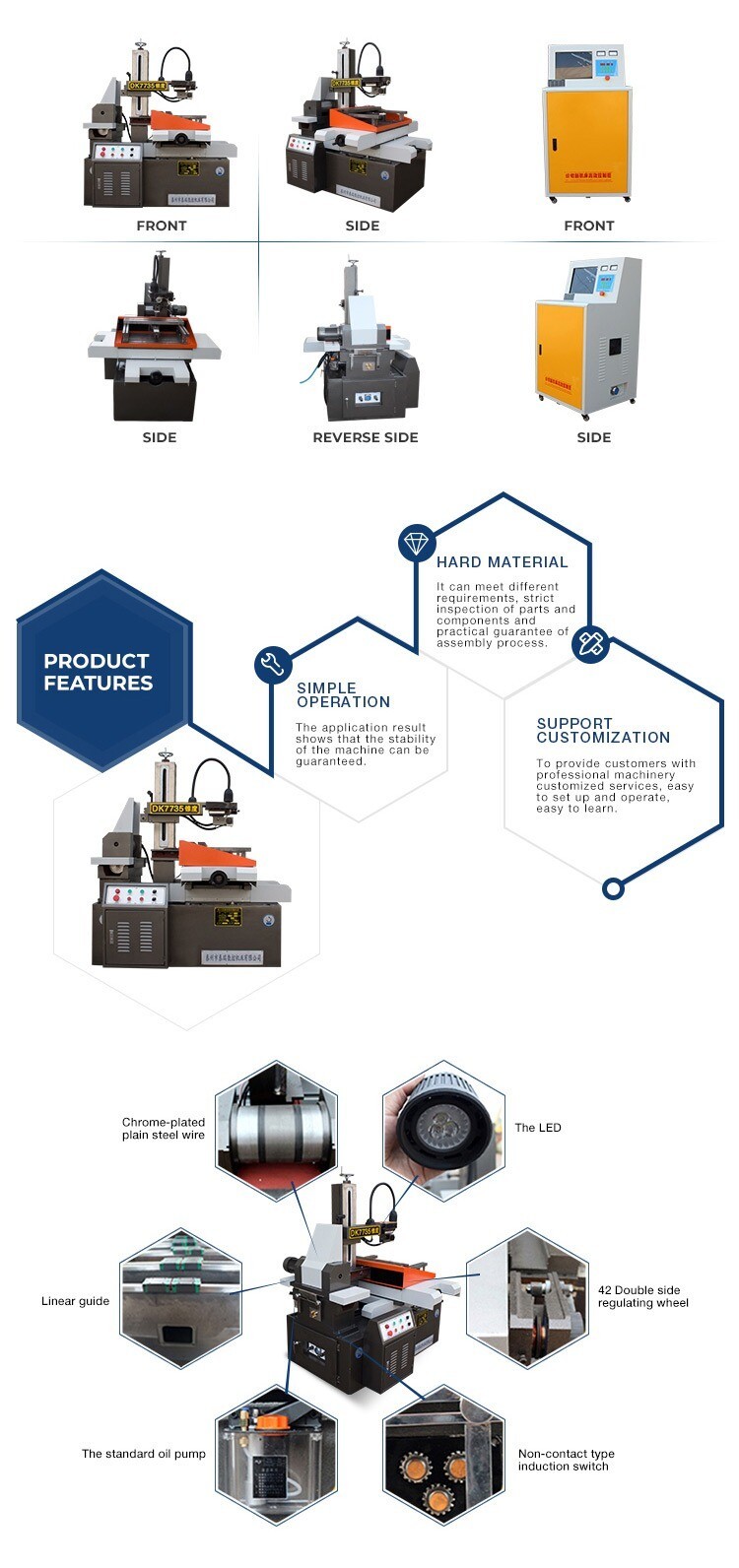

Details Show

Software System Display

Workpiece Show
