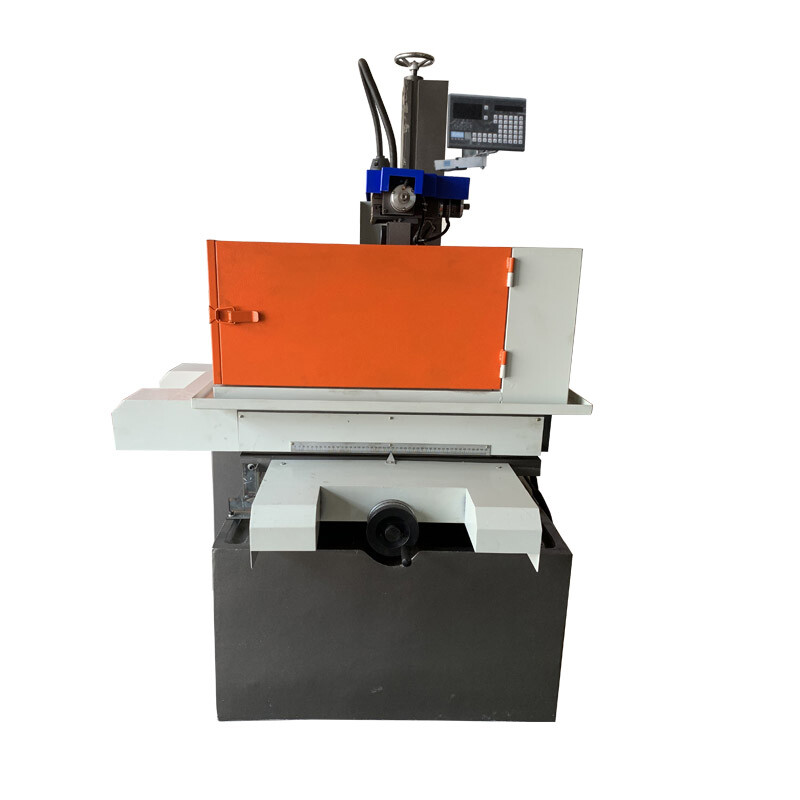

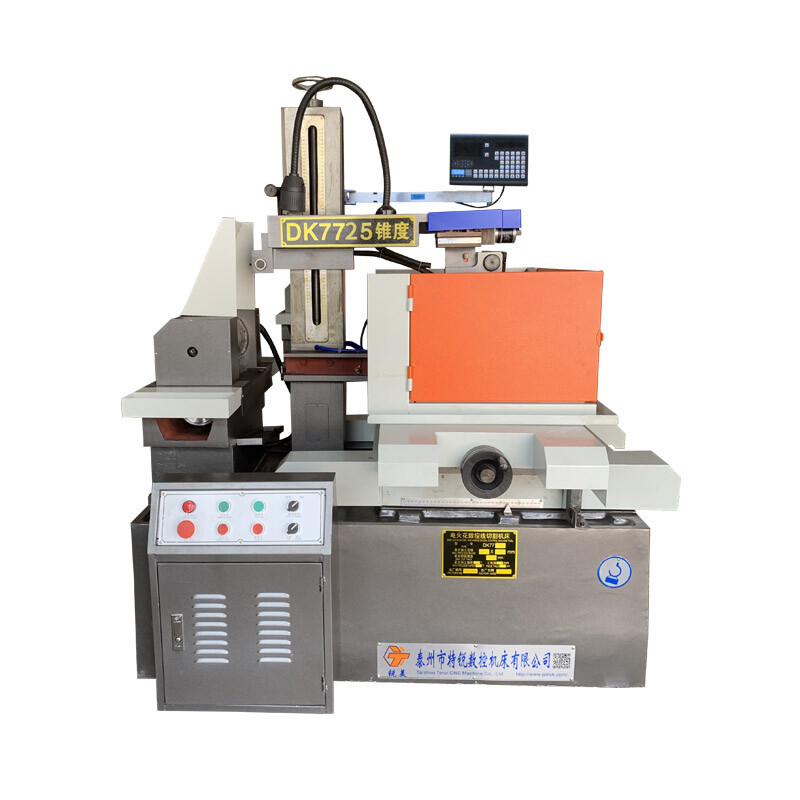

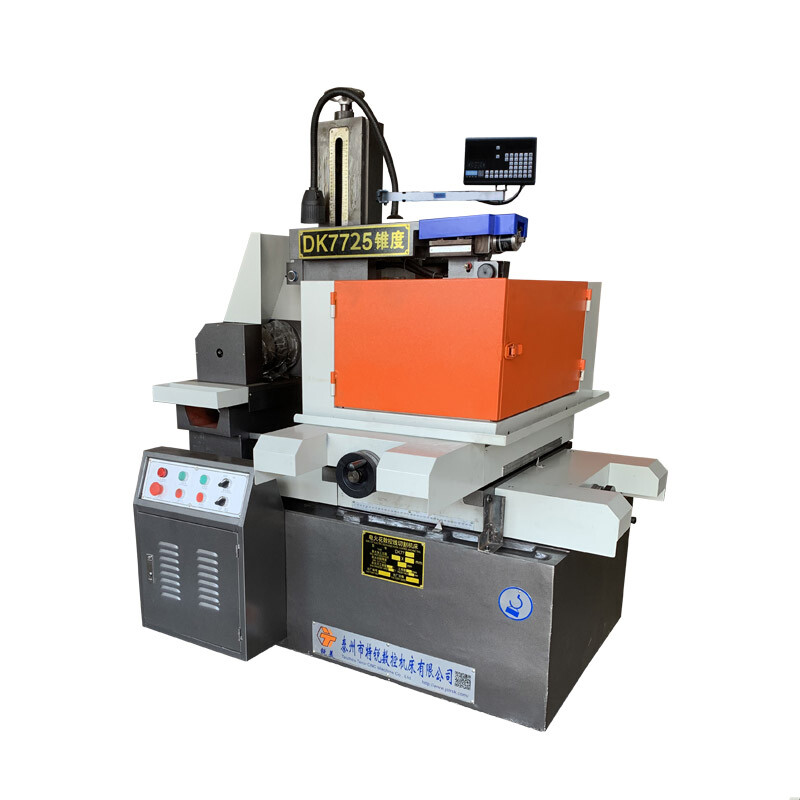

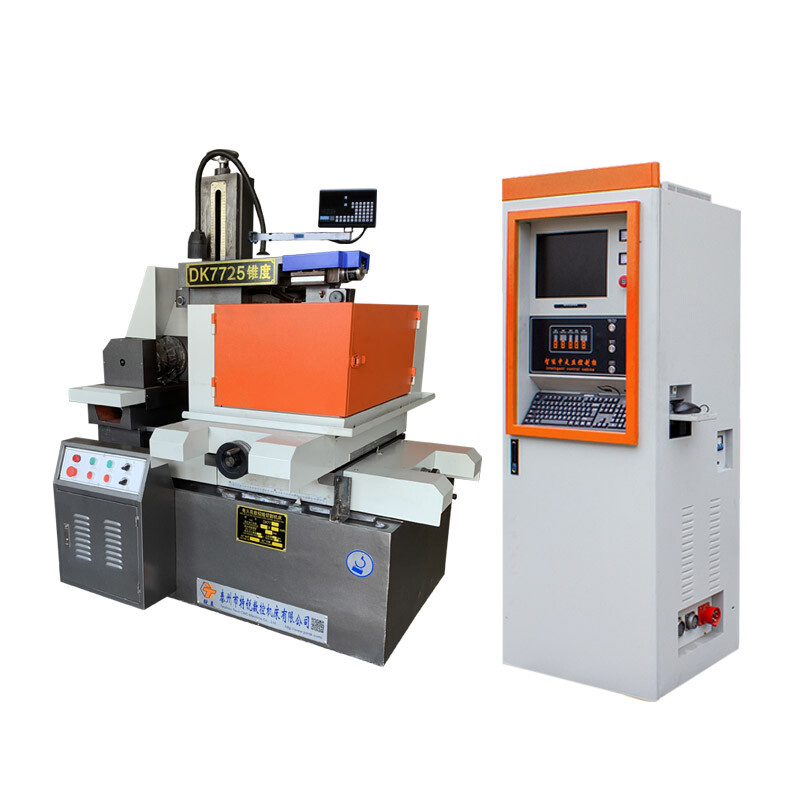

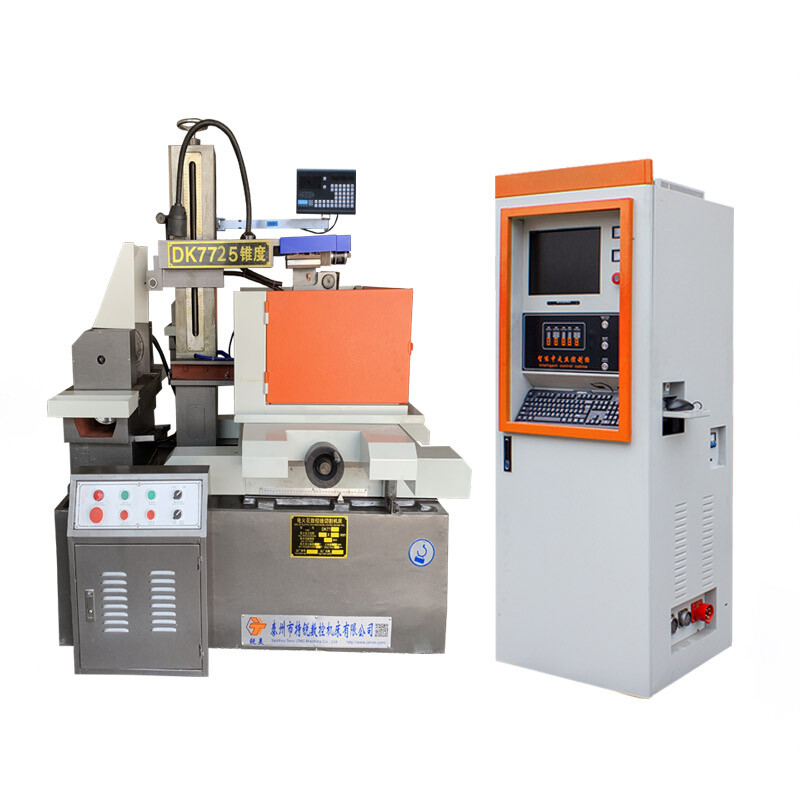

Taizhou Terui CNC Machine Co., Ltd. produces whole series of DK77 CNC EDM wire cutting machines, which adopts high precision V-shaped guide rail (Linear guide rail optional) and P3-grade high precision ball screw. The products have high quality, complete models, long service life and high precision. Machine specifications can be customized according to customer needs, like non-standard models DK7740(45)F, DK7750(55)F, DK7763F, DK7780F, DK77100F, DK77120F or even larger models. The company also produces ±30°, ±45° swing large taper machines and CNC high-precision middle speed EDM wire cutting machines (Precision ≤ ±0.005mm, roughness ≤ 1.0μm).

The following are the main parameters of DK77 series machines.

1、Standard maximum cutting taper:±6°/80mm; (±15°, ±30°, ±45° are optional)

2、Precision ≤ 0.02mm, according to GB7926-2005 standard; (If linear guide equipped, the precision can reach 0.01mm)

3、Best surface roughness ≤ Ra2.5μm (single-cut), Ra1.5μm (multi-cut);

4、Molybdenum wire diameter: 0.1-0.2mm;

5、Max. cutting speed ≥ 120mm^2/min;

6、Voltage: 3 phase 380V (single phase 220V, 3 phase 220V or other voltage can be customized), Power: 1.5KW;

7、Working fluid: Water-based emulsion.

Details Show

Software System Display

Workpiece Show
