CNC Lathe
CK6450 horizontal lathe
Max. swing diamete(mm)：320
Max. swing diameter over cross slide(mm)：130
Spindle rod thread：M48*1.5
Spindle head type：A2-5
Taper of spindle bore：21°
X rapid travel speed(mm/min)：12000
Z rapid travel speed(mm/min)：12000
X servo motor torque(Nm)：110/4
Z servo motor torque(Nm)：110/6
Max. Swing Diameter (mm)：320
Voltage：220V/380V/415V
Certification：CE ISO

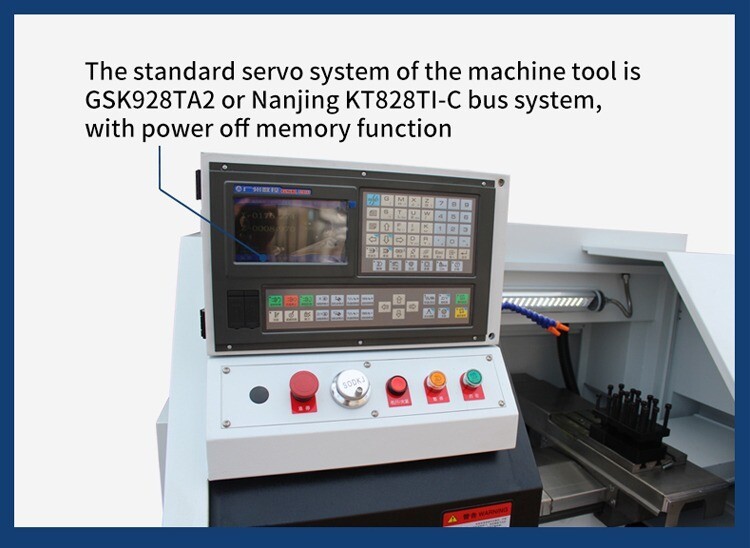

CNC Control System：GSK/KT
Tool Post Stations：4
Weight (KG)：1300
Max. swing diameter over cross slide(mm)：130
Spindle rod thread：M48*1.5
Spindle head type：A2-5
Taper of spindle bore：21°
X rapid travel speed(mm/min)：12000
Z rapid travel speed(mm/min)：12000
X servo motor torque(Nm)：110/4
Z servo motor torque(Nm)：110/6
Max. Swing Diameter (mm)：320
Voltage：220V/380V/415V
Certification：CE ISO
CNC Control System：GSK/KT
Tool Post Stations：4
Weight (KG)：1300
GET A QUOTE
Share:
Product Description
CK6450 horizontal lathe Display：
Parameter table：
